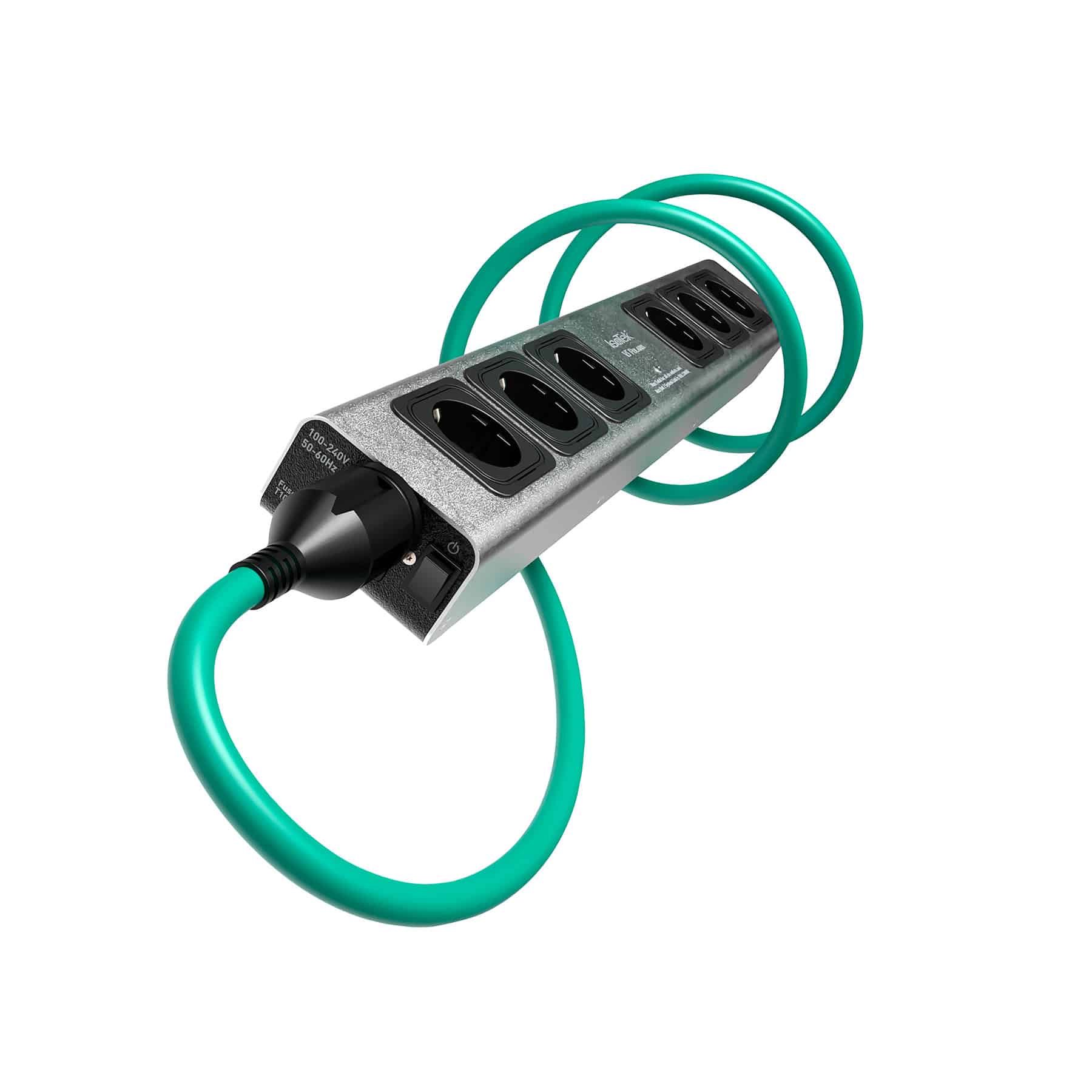

IsoTek V5 Polaris

IsoTek V5 Polaris - Effektiv strømskinne med solidt Initium strømkabel

V5 Polaris er din chance for, at kunne opleve IsoTeks innovative og prisvindende strømfordelere til en fordelagtig pris. Den nye V5 Polaris tilbyder ni gange mere Differential Mode-filtrering, forbedret strømstyrke, nedsat modstand og hele 60 % bedre jævnstrømsmodstand. Beskyttelsen er også fordoblet i denne nye model. V5 Polaris repræsenterer den mest omkostningseffektive opgradering til ethvert lyd- eller audiovisuelt system, og den leverer forbedret ydeevne og beskyttelse. Her får du ualmindelig meget værdi for pengene.

Highlights:

• Velegnet til alle audio- eller AV-systemer
• RFI reduktion 35dB
• Effektivt strømfilter der fjerner almindelig støj og netstøj i differentialtilstand
• 6 uafhængige udtag stopper krydskontaminering i differentialtilstand
• 45.000A øjeblikkelig beskyttelse mod overspænding og lynnedslag
• Fuldt stjernejordet netværk
• Flerstrenget 6n OFC forsølvet intern ledning med FEP-dielektrik
• SYSTEM LINK-udtag til at forlænge udtagene og opretholde en stjernemarkeret jordreference
• Leveres med IsoTek EVO3 Initium strømkabel

The design of V5 Polaris

The V5 Polaris is a compact power cleaning and distribution bar measuring just 510mm in length, 80mm wide and 50mm in height. It features six individual outlets; these reference back to the central internal PCB. Most power filters of this style join outlet sockets together, running each in series connection. This is an error of judgement as Differential Mode Noise, created by the connected load (your audio components) will cross-contaminate between the outlet sockets. The electrical architecture and design of the V5 Polaris prevents this and is therefore superior.

The V5 Polaris features a unique delta filter topology, ten times greater than the recommended standard, this offers more than 20dB power cleaning at 1kHz (reference 600Ohms), this is then improved to 42dB at 10kHz. Most leading experts agree that 10kHz is where radio frequency interference (RFI) starts to influence performance. This is also linked to an amplifiers ability to reject power supply noise. This electrical engineering ensures class- leading power cleaning performance for both Common Mode (RFI) and Differential Mode mains noise. The printed circuit board (PCB) itself also has twice the standard copper loading and is silver-plated.

This unique circuit delivers clean power to its six outlet sockets – each one independently isolated to prevent cross-contamination of Differential Mode mains noise. This is combined with IsoTek’s KERP © (Kirchhoff’s Equal Resistance Path) to ensure equal resistance and equal power delivery to all outlets. The internal wiring is of the highest standard, a unique 2sqmm design featuring pure 6n oxygen free copper conductor strands each silver-plated, these offer low resistance and high amperage. An aerospace grade Fluorinated Ethylene Propylene (FEP) dielectric, with very low dielectric resistance is used to protect the conductors as well as giving an ideal conductor contact dielectric for the internal power delivery system.

Furthermore, in the new V5 version instantaneous protection is increased to 45’000A, this not only protects the circuit but also safeguards your valuable connected equipment via IsoTek’s unique sequential and repeatable protection system.

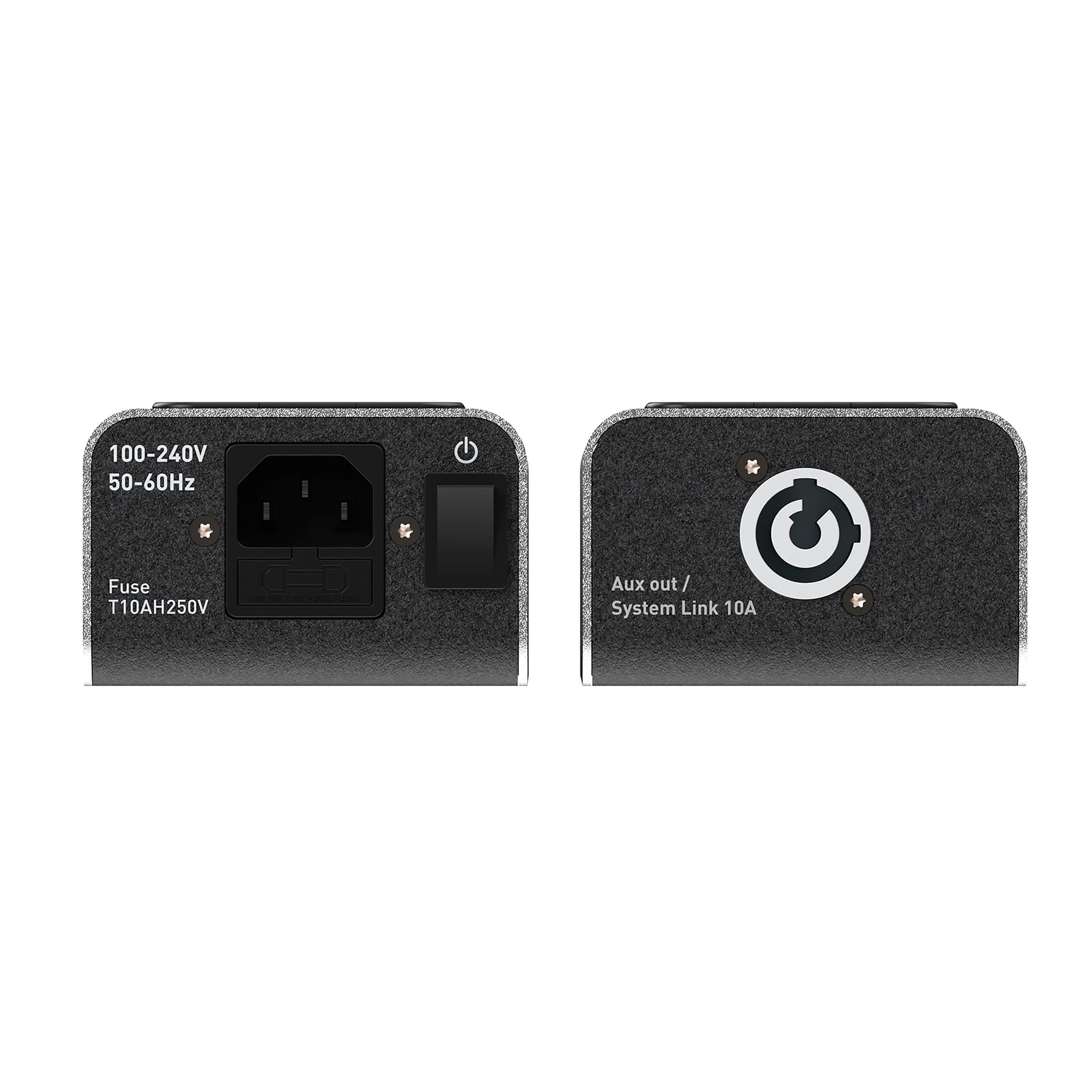

V5 Polaris also contains a System Link outlet, this is designed to connect multiple units together, whilst maintaining a star earth reference, and preserving the need for multiple wall outlet sockets.

A wall hanging bracket system is also included, this allows easy mounting of the product behind your audio equipment rack, if desired.

The internal wiring of IsoTek products synergises with the range of IsoTek power cables. One critical but overlooked area within audio is maintaining commonality of design and material properties through an audio wiring loom, be it a signal carrying cable or a power cable network. IsoTek’s award winning Initium power cable is also included.
